Concierge 2x6

Switch Core

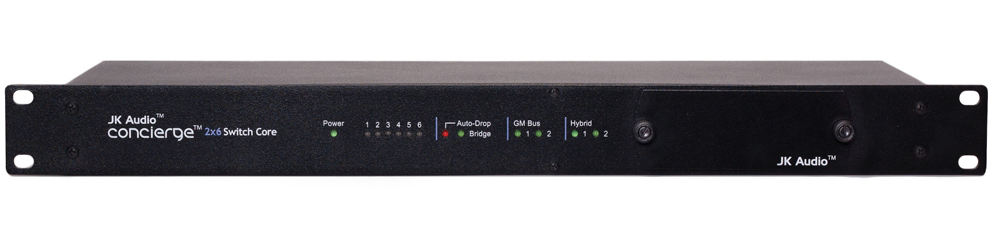

JK Audio Concierge 2x6 Front

The Heart of the Talk Show System.

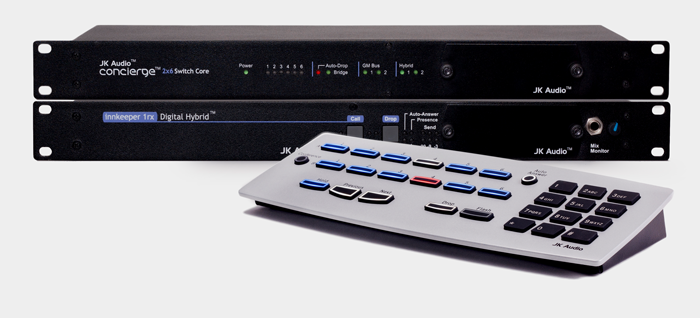

The Concierge Talk Show System consists of the Concierge 2x6 Switch Core, an innkeeper 1rx or innkeeper 2 Digital Hybrid and a Guest Module Control Surface. The Concierge 2x6 switch core allows connection of two hybrids across six phone lines. The switch matrix routes six incoming analog phone lines to either one or two JK Audio innkeeper 1rx™ single channel Digital Hybrids, or one innkeeper 2™ Digital Hybrid. A firmware upgrade is all that is required to make most older model INN 1x/INN 1rx and INN 2 hybrids compatible with this new system.

Learn More Details Specs

Product Details

Features
6 Phone Line jacks
2 Hybrid Connections
Expandable to 2 x 12 Lines
Hold Audio Input
LED Line Status Indicators
Front panel DIP Switches
Auto-Ring & Auto-Drop Controls
Made in America
Approved for Sale in Europe and Australia

Flexibility

Concierge adds music on hold input, auxiliary phone integration, and intuitive call control. The end result is a powerful, flexible system featuring excellent call screening capabilities, while allowing two studios to share the phone lines. Two Concierge switch cores can be bridged together, providing six additional phones lines for a 2 hybrid, 12 line system.

Expandability

Up to eight Guest Module control surfaces can be added to provide remote control of the switch matrix over CAT5 cable. Guest Modules are hot swappable without losing calls, and feature line selection buttons that change color to indicate call status. Guest Modules are available in GM1x6, GM2x6, and GM1x12 desktop and rack mount versions.

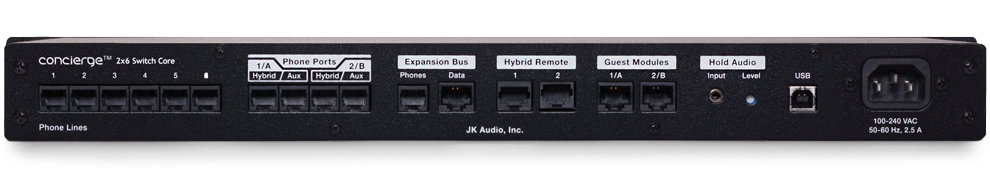

JK Audio Concierge 2x6 Back

Specs

Specifications
Phone Lines (6) RJ11C
Isolation 1500 VAC
Ringer 0.5B REN
Hold Audio Line Input 1/8" (3.5mm) Mono
Impedance 20k ohms
Level -10 dBu nom
USB Type B
Standard 2.0
Power Supply IEC320-C14
Power 120-240 VAC, 50-60 Hz,
25 Watts max
Dimensions
Size 1.75” x 7.3” x 19”
( 4.5 x 18.6 x 48.3 cm )
Weight 5.4 lbs ( 2.4 kg )
