Quick and Simple.

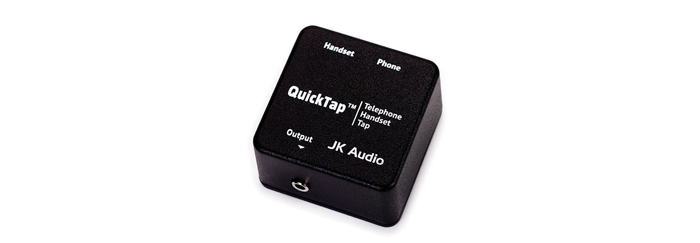

Connect the QuickTap between your telephone and handset for quick access to audio from any telephone. QuickTap gives you a quick and easy way to record telephone interviews directly to your portable recorder or even directly to your computer sound card to be uploaded to your podcast. The QuickTap does not work with cellular telephones or any telephone with a keypad in the handset.
Product Details
| Featured Products | |
| QT | QuickTap |
| T1 | THAT-1 |
| T2 | THAT-2 |
| VP | Voice Path |
| Features | QT | T1 | T2 | VP |
| Works with Analog, Digital, PBX, or VoIP Telephones | ||||
| 1/8" (3.5mm) Mono Audio Input | ||||
| 1/8" (3.5mm) Mono Audio Output | ||||
| RCA Input & Output | ||||
| XLR Input & Output | ||||
| Input Level Control | ||||
| Output Level Control | ||||
| Switch Selects Between Carbon, Dynamic or Electret Handset Types | ||||
| Passive Design. No Battery or AC Required |
||||
| Made in America | ||||
| Approved for Sale in Europe and Australia |
Record Simple Interviews
Simply unplug the handset coily cord from the base of your telephone and plug it directly into the QuickTap. Then, using the supplied cable, connect the QuickTap to the base of the telephone. Now connect your audio equipment or powered speaker to the audio output jack. This jack contains a nice mix of both sides of the conversation, as well as the tones being pressed on the keypad.
Specs
| Tech Reports | |
| Recording Telephone Interviews | |
| Downloads | |
| Datasheet (66 kb) | |
| User Guide (281 kb) | |
| Specifications | |
| Line Output | 1/8" (3.5 mm) Mono |
| Impedance | 600 ohms |
| Level | 100 mV RMS (-16 dBu nom) |
| Misc | |
| Handset and Telephone Connectors | RJ22 |
| Size | 2" x 2" x 1.3" (5.1 x 5.1 x 3.3 cm) |
| Weight | 3.4 oz |
