This Product has been discontinued.

Interloop

Discontinued
Intercom-to-Wireless Bridge

HD Voice (Wide-Band Speech)
Bluetooth Wireless Technology

Stay in the Loop.

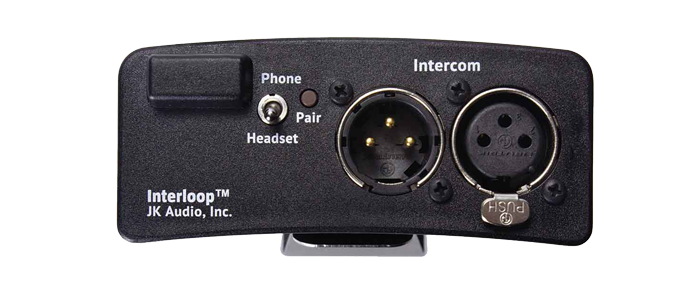

Interloop™ works with industry standard Two-Wire, Party-Line intercoms, connecting to the existing intercom system like any other belt pack. Using Bluetooth Wireless Technology, Interloop™ allows wireless connection to a variety of audio devices. A rear panel switch selects Headset or Phone connection. Headset mode allows you to connect to a Bluetooth enabled headset for wireless freedom. Phone mode allows you to connect to a wireless phone to let others join in, or connect to a notebook or laptop to provide remote voice access using communications applications such as Skype™.

Learn More Details Specs

Product Details

Featured Products
IL	Interloop
OL	Outerloop
3.5	Outerloop 3.5

Features	IL	OL	3.5
HD Voice Compatible (7 kHz Wide-Band Speech)
Connects to Headsets, Phones, & Notebooks with Bluetooth Wireless Technology
Connects to Phones and Notebooks with 4-conductor 3.5mm Headset Interface
2.4 GHz Encrypted Digital Wireless
3-pin XLR Male and Female Intercom Jacks
4-pin and 5-pin Male or Female Headset Jacks

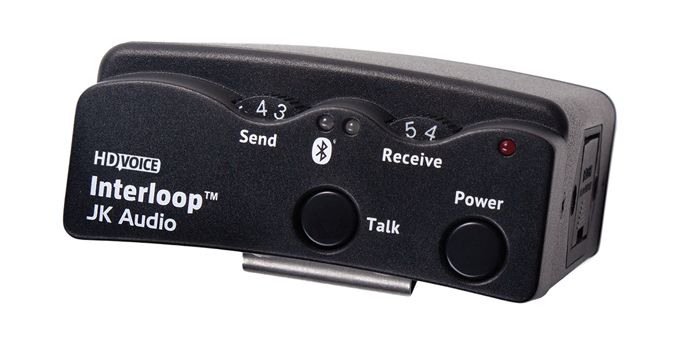

Send and Receive Volume Controls
Push-On, Push-Off Talk Button
Recessed Sidetone Level control
Intercom Powered with 9 Volt Battery Backup
Number of hours on one 9 Volt Battery	N/A	10hr	>20hr
Made in America
Approved for Sale in Europe and Australia

Battery Backup

Powered by the intercom system, yet uses less current than a typical belt pack. Includes 9 VDC battery backup, holding the wireless connection while changing cables.

Increased Range

While Interloop™ will work with any Bluetooth enabled headset, most headsets were designed to work a short distance from the phone. JK Audio Outerloop and BlueSet offer increased range and performance making it the perfect match.

Specs

Tech Reports
	HD Voice Primer
	Wireless Phone Compatibility
	About Bluetooth Wireless Technology

Downloads
	Datasheet (148 kb)
	User Guide (522 kb)

Specifications
Intercom Channel	Male & Female 3-pin XLR
Output Level	0 dBu ( 775 mV ) nominal
Terminating Impedance	200 ohms
Bridging Impedance	>15k ohms
Pin 1	Common
Pin 2	30 VDC ( +12 VDC min ) 35 mA
Pin 3	Audio
Bluetooth Wireless Technology
Standard	Bluetooth 3.0
Profile	Hands Free (HF)
Distance	66 ft (20 m)
Frequency Response	Hands-Free (Full Duplex): 300 Hz– 3.4 kHz Hands-Free (Full Duplex HD): 50 Hz– 7 kHz
Misc
Power	Intercom System with 9 VDC Battery Backup
Size	4.7” x 3.75” x 1.65” (12 x 9.5 x 4.2 cm)
Weight	10 oz (275 g)

*HD Voice: While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice calls offer 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives voice a more natural sound, while the additional upper octave dramatically improves speech clarity and intelligibility.

*Wireless HD Calls: To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice.
