BluePack

Wireless Interview Tool

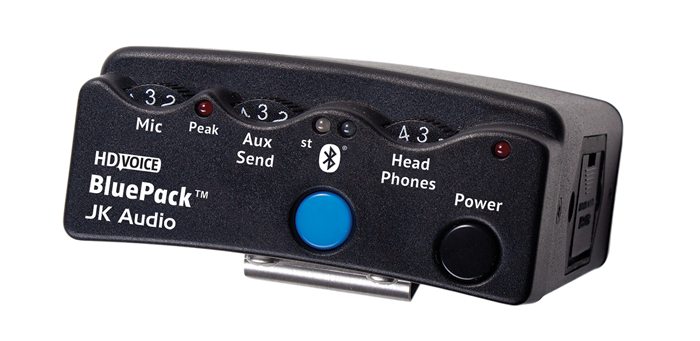

JK Audio BluePack Front

Field Reporting. In the Field.

BluePack allows live man-on-the-street interviews through a cell phone equipped with Bluetooth Wireless Technology. This sleek belt pack provides a professional look and feel to field reporters and remote talent.

Learn More Details Specs

Product Details

Features R1 BP
HD Voice Compatible (7 kHz Wide-Band Speech)
Bluetooth Wireless Technology
4-conductor 3.5mm Headset Interface
Connects to Wireless Phones & Notebooks
Headphone, Mic, and Line Input Level Controls
XLR Mic Input
Mic Mute Switch
3.5 mm Stereo Line Input
3.5 mm Stereo Line Output
¼" Stereo Headphone Jack
>10 Hours on one 9V Alkaline Battery
>20 Hours on one 9V Alkaline Battery
Made in America
Approved for Sale in Europe and Australia

Wireless Phones and Notebooks

BluePack pairs to your cell phone like a Bluetooth wireless headset. This professional microphone preamp and powerful headphone amplifier make sure the message gets through. A 3.5 mm stereo line input jack allows recordings to be mixed into the broadcast.

The 3.5 mm stereo line output jack provides your full bandwidth microphone signal on the left channel and Bluetooth audio on the right channel. Like any phone call, live interviews are limited to 3.4 kHz voice bandwidth back to the station. This stereo output jack allows you to make a full bandwidth recording using your favorite recorder for transfer back at the station or over the web.

Live Remotes

The stereo headphone output gives you a mix of the XLR microphone input, 3.5 mm input, and Bluetooth audio. This powerful ½ watt stereo headphone amplifier will cut through any crowd noise. BluePack also pairs to Bluetooth equipped sound cards and music players in full bandwidth stereo A2DP mode.

HD Voice

BluePack now features HD Voice technology, allowing 7 kHz Wide Band Speech when used with compatible phones on compatible networks. Read our HD Voice primer for more details.

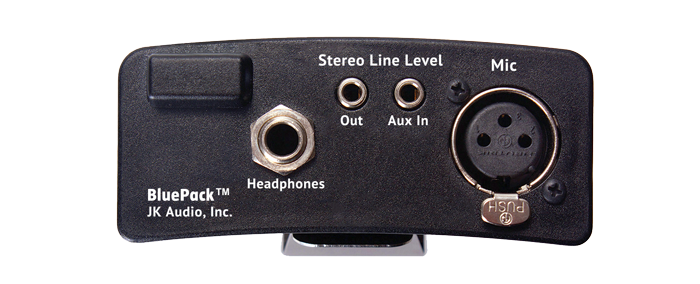

JK Audio BluePack Back

Specs

Specifications
Mic Female XLR
Impedance 2k ohms
Level -34 dBu nom
Aux In 1/8" (3.5 mm) Stereo
Impedance 20k ohms
Level -10 dBu nom
Out 1/8" (3.5mm) Stereo
Impedance 100 ohms
Level -10 dBu nom
Headphone 1/4" Stereo
Impedance 8 ohms
Level 1/2 watt per channel
Bluetooth Wireless Technology
Standard Bluetooth 3.0
Distance 66 ft (20 m)
Frequency Response Hands-Free (Full Duplex): 300 Hz– 3.4 kHz
Hands-Free (Full Duplex HD): 50 Hz– 7 kHz
A2DP (Master » Headset): 30 Hz– 17 kHz
Misc
Power 9 VDC Battery
Size 4.7” x 3.75” x 1.65” (12 x 9.5 x 4.2 cm)
Weight 10 oz (275 g)
*HD Voice: While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice calls offer 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives voice a more natural sound, while the additional upper octave dramatically improves speech clarity and intelligibility.

*Wireless HD Calls: To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice.
