Outerloop 3.5

Universal Intercom Belt Pack

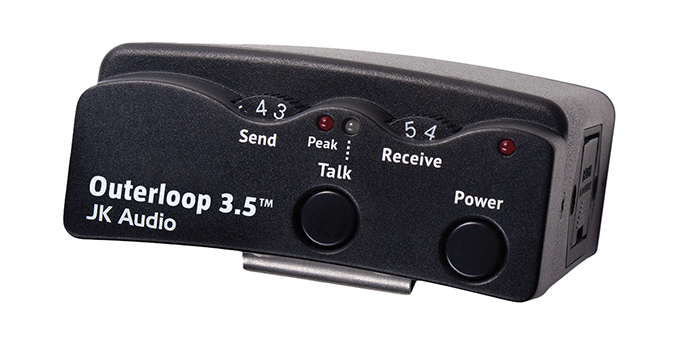

JK Audio Outerloop 3.5 Front

A Universal Intercom Belt Pack for your Wireless Device.

Outerloop 3.5™ provides a wireless link to your intercom system. This universal belt pack provides XLR connections for your existing 4-pin or 5-pin intercom headset, routing audio through a wired connection to your mobile device. Use your mobile device to call into your intercom phone bridge, station phone coupler, or any phone-based intercom app such as Unity Intercom or Clear-Com® Agent-IC.

Learn More Details Specs

Product Details

Features IL OL 3.5
HD Voice Compatible (7 kHz Wide-Band Speech)
Connects to Headsets, Phones, & Notebooks with Bluetooth Wireless Technology
Connects to Phones and Notebooks with 4-conductor 3.5mm Headset Interface
2.4 GHz Encrypted Digital Wireless
3-pin XLR Male and Female Intercom Jacks
4-pin and 5-pin Male or Female Headset Jacks
Send and Receive Volume Controls
Push-On, Push-Off Talk Button
Recessed Sidetone Level control
Intercom Powered with 9 Volt Battery Backup
Number of hours on one 9 Volt Battery N/A 10hr >20hr
Made in America
Approved for Sale in Europe and Australia

Wired to a Wireless Network

Outerloop 3.5 includes a cable that plugs into the 3.5 mm TRRS headset/earbud jack of your mobile device, providing two-way communications. Separate Send and Receive level controls, a push-on, push-off Talk button, as well as a recessed sidetone level control let you adapt to any situation whether you are around the corner or around the world.

Universality

Adapting to the mixed-up intercom world, model OTL3.5-F features both 4-pin and 5-pin Female XLR headset jacks, while model OTL3.5-M features both 4-pin and 5-pin Male XLR headset jacks.

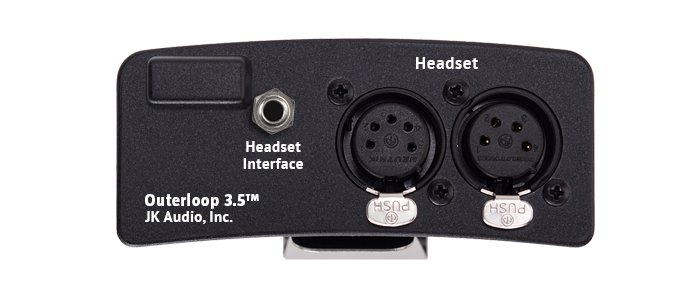

JK Audio Outerloop-3-5-F Back

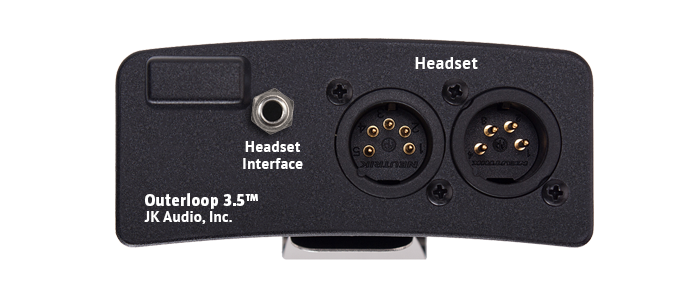

JK Audio Outerloop-3-5-M Back

Specs

Specifications
Model Outerloop 3.5-F
Headset 4-pin Female XLR, 5-pin Female XLR
Model Outerloop 3.5-M
Headset 4-pin Male XLR, 5-pin Male XLR
Headset Microphone
Impedance 50-2000 ohms
Headset Earpiece
Load Impedance 50-600 ohms
Power >50 mW into 150 ohms
Misc
Frequency Response 50Hz - 15 kHz
Power >20 hours on one 9 VDC Battery
Size 4.7” x 3.75” x 1.65” (12 x 9.5 x 4.2 cm)
Weight 10 oz (275 g)
*HD Voice: While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice calls offer 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives voice a more natural sound, while the additional upper octave dramatically improves speech clarity and intelligibility.

*Wireless HD Calls: To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice.
