BlueDriver-M3

Wireless Audio Interface
JK Audio BlueDriver-M3

Bluetooth Device to Mic Input.

Pair to your Bluetooth equipped cell phone or headset to get audio straight from your Bluetooth device into your Mic input. The 3.5 mm send jack will accept a signal from the mixer for transmission back to the cell phone or headset.

Learn More Details Specs

Product Details

Features D3 F3 M3
HD Voice Compatible (7 kHz Wide-Band Speech)
3-pin Female XLR Input
3-pin Male XLR Output
3.5 mm Input
3.5 mm Output
3.5mm Earpiece/Headphone Output
Trim Pot Adjusts Mic Level
Headset/Phone Switch
Mini USB Power Jack
>18 Hours on one 9-volt Alkaline Battery
>6 hours on Internal Li-Ion Battery
Made in America
Approved for Sale in Europe and Australia


Headset Mode vs. Phone Mode

A switch selects between connection to a Bluetooth headset or speaker, or to a phone.

Headset Connect

Pair BlueDriver-M3 to your 3rd party Bluetooth headset. Some Bluetooth headsets allow you to switch between your audio device and a cell phone.

Phone Connect

Pair BlueDriver-M3 to your cell phone to call into the station or bring in caller audio.

Phone Mode

Take Calls During a Live Event or Remote Broadcast

BlueDriver-M3-App-Sheet-1
  1. While BlueDriver is off, set the Role Select Switch to <Phone>.
  2. Plug BlueDriver-M3 into the bottom of a dynamic microphone and pair to a cell phone.
  3. Simply plug BlueDriver-M3 into any mic level input of your mixer or console and pair to a cell phone.
  4. Place or take a call. This setup allows voice band, bi-directional audio to and from your cell phone.
  5. The mini cable provided with your BlueDriver allows you to connect a line output or headphone output of your mixer to the <Send> jack on the BlueDriver-M3. This signal goes back to the caller, so make sure you don’t send the Caller’s voice back to the caller. See the last page of this document or www.jkaudio.com/support/tech-notes for a quick primer on “Mix-Minus”.

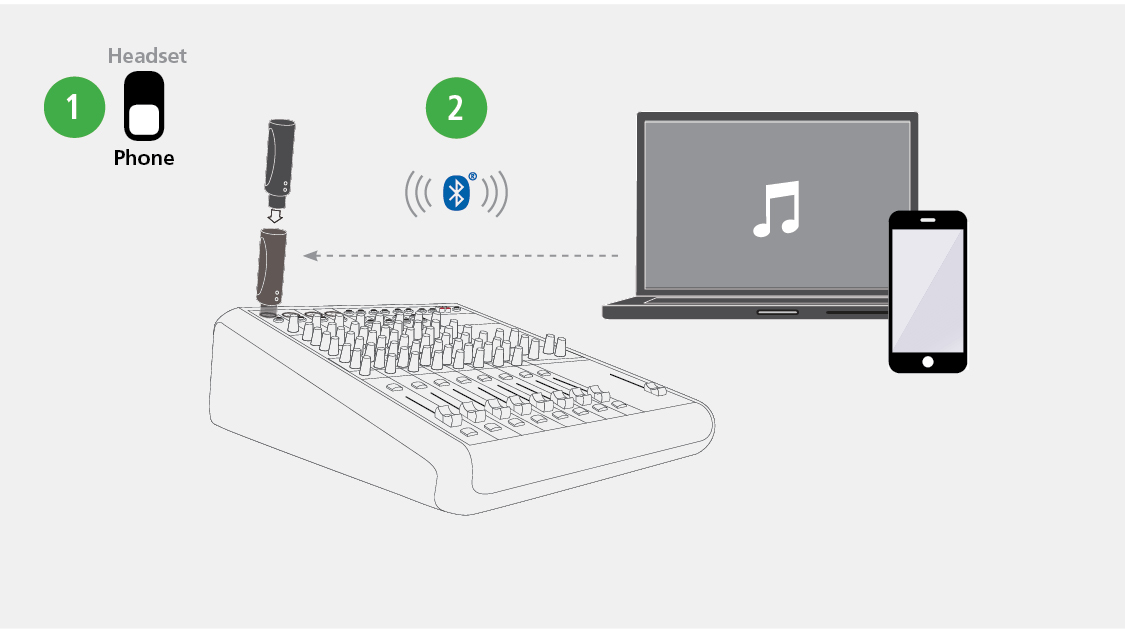

Receive A2DP Audio From your Bluetooth Device

BlueDriver-M3-App-Sheet-2

  1. While BlueDriver is off, set the Role Select Switch to <Phone>.
  2. Simply plug BlueDriver-M3 into any mic level input of your mixer or console and pair to your Bluetooth device.
  3. Stream full-bandwidth A2DP audio from your Bluetooth device.

Headset Mode

Send A2DP Audio to your Bluetooth Device

BlueDriver-M3-App-Sheet-3

  1. While BlueDriver is off, set the Role Select Switch to <Headset>.
  2. Simply connect the supplied cord between the <Send> mini jack on your BlueDriver-M3 and the line level or headphone output jack of your audio source.
  3. Pair to your Bluetooth headphones or speakers.
Keep in mind that Bluetooth A2DP processing adds a 150 millisecond delay, so this application is more appropriate for pre-recorded or broadcast applications that do not have a live mic or interactive conversation. A2DP is a one-way transmission, with nothing coming back on the return channel.

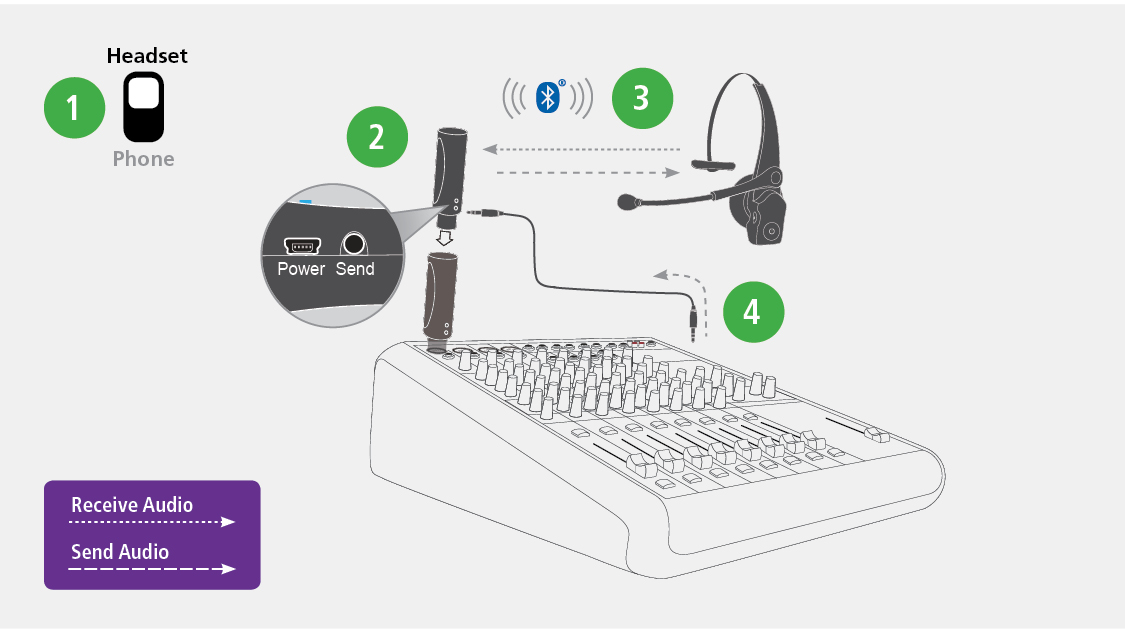

Bluetooth Headset as a Talkback Intercom

BlueDriver-M3-App-Sheet-4

Need a short range point-to-point intercom during your next live event?

  1. While BlueDriver is off, set the Role Select Switch to <Headset>.
  2. Simply plug BlueDriver-M3 into any mic level input of your mixer or console.
  3. Pair to your favorite Bluetooth Headset. This setup allows voice-band bi-directional audio up to 66 ft from the BlueDriver.
  4. The mini cable provided with your BlueDriver allows you to connect an aux output of your mixer to the <Send> jack on the BlueDriver-M3. This signal goes back to the headset, so make sure you don’t send your voice back to yourself.

Specs

Specifications
Input 1/8" (3.5mm) Stereo
Impedance 20k ohms
Level -10 dBu nom.
Output 3-pin Male XLR
Impedance 1k ohms
Level -34 dBu nom.
Bluetooth Wireless Technology
Standard 3.0
Frequency Response Hands-Free (Full Duplex): 300 Hz– 3.4 kHz
Hands-Free (Full Duplex HD): 50 Hz– 7 kHz
A2DP (Master » Headset): 30 Hz– 17 kHz
End-to-End Latency Audio Recording:
25 ms using HD Voice Profile.
Streaming Full Bandwidth Audio:
150 ms using Bluetooth A2DP Profile.
Range 66 ft (20 m)
Misc.
Connector Mini-USB Series B
Battery Internal Lithium-Ion Polymer Rechargeable
Size 1.1” x 4.4” (2.8 cm x 11.2 cm)
Weight 2.1 oz. (60 g)
*HD Voice: While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice calls offer 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives voice a more natural sound, while the additional upper octave dramatically improves speech clarity and intelligibility.

*Wireless HD Calls: To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice.
